How to Create SOPs and Work Instructions for Injection Molding: A Practical Guide
Learn how to create SOPs and work instructions for injection molding. Covers what to document first, how to capture tribal knowledge, digital vs. paper formats, and getting operators to actually use them.
30-Second Summary
Verbal knowledge transfer works until it doesn’t. New molds, new engineers, and production scale expose every gap. Formal SOPs and work instructions close those gaps, but only if they are built correctly and actually used on the floor.
What Is an SOP for Injection Molding?
A standard operating procedure (SOP) for injection molding is a documented set of step-by-step instructions that defines how a specific process (such as mold changeover, machine startup, or quality inspection) should be performed on the production floor. SOPs standardize work across shifts, reduce defects, and preserve process knowledge that would otherwise exist only in the heads of experienced engineers.
Work instructions go one level deeper: they describe exactly how to perform a specific task, including parameter values, tolerances, physical movements, and safety steps. For more on this distinction, see our guide on SOP vs. work instructions.
Why Injection Molding Shops Delay Documentation (And Why That Becomes a Problem)
Small molding shops run on tribal knowledge. Engineers who have run the same 50 molds for years carry the process in their heads: parameters, quirks, known failure modes, undocumented fixes. This works until one of three things happens: a key person leaves, production scales, or new molds arrive that nobody fully understands yet.
At that point, verbal handoffs break down. New engineers make avoidable mistakes. Mold changes take longer. Quality becomes inconsistent across shifts.
The cost is real. According to the National Institute of Standards and Technology (NIST), U.S. manufacturers lose an estimated $57.7 billion annually due to inadequate knowledge management, with undocumented processes and inconsistent training as primary contributors. In injection molding specifically, unplanned downtime and scrap from operator error during changeovers are among the top drivers of lost productivity.
The solution is not just documentation. It is documentation that operators will actually reference during work.
What to Document First in an Injection Molding Shop
Do not try to document everything at once. Apply the Pareto principle: identify the 20% of processes that cause 80% of problems or that new engineers struggle with most.
For most injection molding shops, that means starting with:
- Mold changeover procedures, especially if you run 2+ changes per day
- Machine startup and shutdown sequences, including warm-up and purge steps
- Process parameters per mold: temperatures, pressures, cycle times, tolerances
- Post-changeover ramp-up and first-article inspection steps
- Safety checks, including mold safety verification at each shift change
Group molds by family or size where possible. A single changeover SOP that covers small molds as a category is more useful than 15 identical documents with minor variations.
What Good Injection Molding Work Instructions Contain
A work instruction that sits in a binder and never gets read is worse than no documentation, because it creates false confidence that the process is covered.
Effective work instructions include:
Visual content over dense text. Photos with arrows pointing to specific machine positions, mold features, or control panel settings. If a step involves physical positioning or visual confirmation, show it. Operators follow images faster than they parse paragraphs.
Safety information at the top, prominent. Required PPE and major hazards before anything else. Bold, not buried.
Parameters in tables. Temperatures, pressures, shot sizes, cooling times, structured as reference data, not written into sentences.
| Parameter | Example Value | Tolerance |
|---|---|---|
| Barrel temperature (zone 1) | 220 °C | ± 5 °C |
| Injection pressure | 80 MPa | ± 5 MPa |
| Cooling time | 18 s | ± 2 s |
| Cycle time | 35 s | Target |
Known failure modes and what to do. Document the tribal knowledge explicitly: what goes wrong during ramp-up, how to recognize it, and what the fix is.
Tooling and materials checklist. What is required before starting, not assumed to already be there.
Version control. Date, revision number, and who approved it on every document.
How to Capture Tribal Knowledge Before Writing SOPs
The biggest mistake in SOP creation is going straight to documentation without first extracting what is actually known.
Tribal knowledge is not structured in a way that maps cleanly to procedure steps. Experienced engineers often cannot articulate what they do implicitly. They will write a correct-looking SOP that omits the things they do automatically.
A better approach before writing formal documents:
Step 1: Record daily logs. Have engineers keep logs for several weeks, noting what worked, what failed, and what adjustments were made and why. Voice notes transcribed to text work well if writing feels like overhead.
Step 2: Identify patterns. After enough cycles, patterns emerge that would never appear in a self-reported SOP. Use that material as the source.
Step 3: Draft the SOP from real data. Write the procedure based on actual observed steps, not assumed steps.
Step 4: Test with a newcomer. Have someone who does not know the process try to follow the draft. Every point where they get stuck is a gap. Fix those before publishing.
If you already have video recordings of changeovers or training walkthroughs, these can be converted directly into structured SOPs using AI tools, skipping much of the manual extraction work.
Digital vs. Paper SOPs: What Actually Gets Used on the Shop Floor
The format matters more than most teams expect.
Paper SOPs laminated near the machine get referenced. Binders in a filing cabinet do not. Paper works when the instructions rarely change and access is not a barrier.

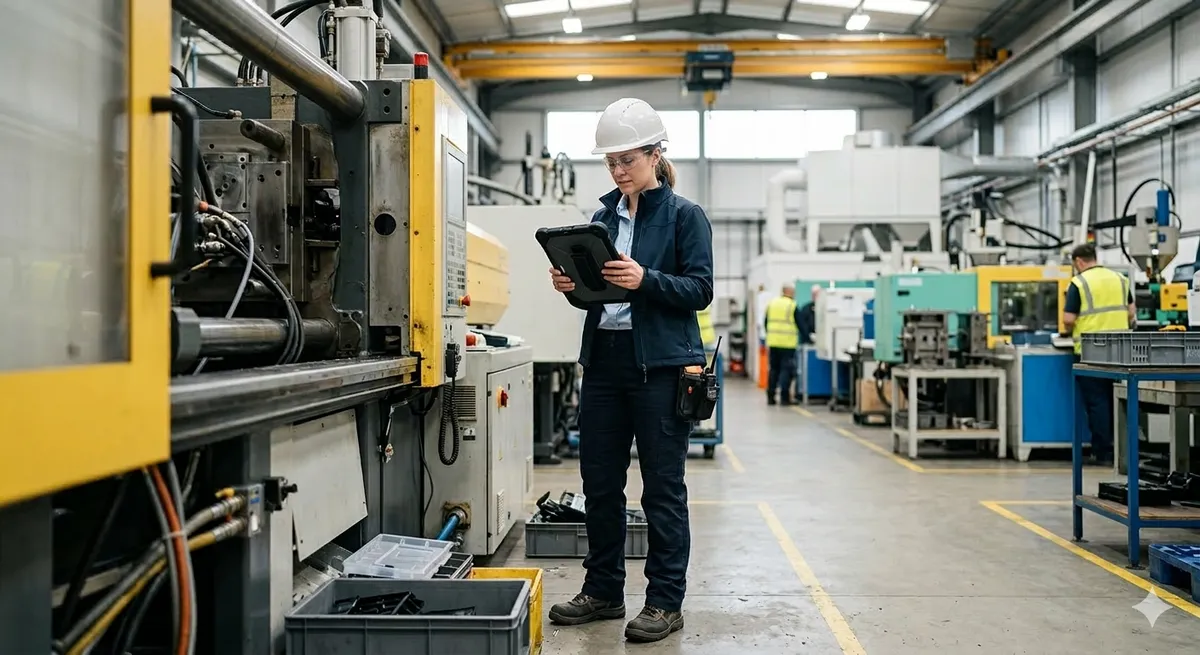

Digital SOPs on tablets or mounted screens work better when you update frequently, need to push changes instantly across the floor, or want to track that instructions were read and followed. Tablets near each machine remove the access barrier entirely. The tradeoff is cost and maintenance.
| Format | Best When | Limitation |
|---|---|---|
| Laminated paper at machine | Low change frequency, simple processes | Manual updates, no tracking |
| Binder in office | Never - low accessibility kills adoption | Nobody walks to the office mid-task |
| Tablet at machine | Frequent updates, compliance tracking needed | Hardware cost and maintenance |
| QR code on equipment | Mixed environment, links to current version | Requires phone or tablet nearby |
Avoid Excel for authoring SOPs. It requires specialized knowledge to update, does not handle images well, and produces documents that look like spreadsheets rather than instructions.
Tools for Creating Injection Molding SOPs
| Tool | Best For | Limitation |
|---|---|---|
| Word / Google Docs | Simple shops, low change frequency | Manual distribution, version drift |
| Dozuki | Mid-to-large operations, ISO/compliance needs | Higher cost |
| SweetProcess / Gembadocs | Small to mid shops without compliance requirements | Less manufacturing-specific |
| SOPX | Converting existing process videos into structured SOPs | Requires usable source video |
| Tablets + any cloud doc tool | Floor accessibility, instant updates | Hardware cost and maintenance |
If you already have video recordings of your processes (training walkthroughs, GoPro footage of changeovers, even phone recordings) these can be converted directly into structured SOPs using AI tools like SOPX without starting from scratch.
How to Get Operators to Actually Use SOPs
An SOP nobody references is documentation theater. Adoption is harder than authorship.
What works:
Involve operators in writing. Engineers write SOPs from their own mental model. Operators follow them from a different starting point. Bring both into the authoring process. When operators co-own the document, they use it.
Make access trivially easy. The instruction must be reachable in under 10 seconds from the point of work. Laminated sheet on the machine, tablet mounted nearby, or QR code on the equipment that opens the current version.
Sign-off on training, not just document existence. Keep a training record per operator per SOP. This documents that they have read and been trained on each procedure, which is useful for audits and essential for accountability.
Review and revise regularly. An SOP that never changes is a sign it is not being used. Build a feedback mechanism so floor engineers can flag when a procedure no longer matches what is actually done.
SOP vs. Work Instruction: Know Which One You Are Writing
These are not interchangeable.
| SOP | Work Instruction | |
|---|---|---|
| Describes | What is done and in what sequence | Exactly how a specific step is performed |
| Audience | Manager, quality engineer, auditor | Operator on the floor |
| Used for | Audits, governance, process oversight | During the work itself |
| Detail level | Process-level | Task-level (values, tolerances, movements) |
| Example | Mold changeover process end to end | How to seat and torque a specific mold type |
For a deeper comparison, see SOP vs. Work Instructions: What’s the Difference?
Know which one you are writing before you start.
FAQs
What is the most important SOP for an injection molding shop?
Mold changeover procedures. Changeovers happen frequently, involve the most steps, and are where the most tribal knowledge gets lost. If you document one process first, make it this one.
How detailed should injection molding work instructions be?
Detailed enough that a trained operator who has never run that specific mold can follow the steps without asking someone. Include parameter values, tolerances, visual references, and known failure modes, not just general descriptions.
How often should injection molding SOPs be updated?
Review SOPs at least quarterly, and update immediately when a process change occurs: new mold, new material, updated machine settings, or a corrective action from a quality issue. Outdated SOPs are worse than no SOPs.
Can I create SOPs from existing training videos?
Yes. If you have video recordings of changeovers, machine setups, or training walkthroughs, AI tools like SOPX can convert them into structured step-by-step SOPs with screenshots and text, significantly faster than writing from scratch.
What format works best for SOPs on the production floor?
Laminated paper at the machine or a tablet with digital access. The key is proximity: the SOP must be reachable in under 10 seconds from the point of work. Binders in an office or PDFs on a shared drive do not get used.
Do injection molding SOPs help with ISO certification?
Yes. ISO 9001 and IATF 16949 (automotive) both require documented procedures, training records, and evidence that processes are standardized and followed. Well-structured SOPs with version control and sign-off tracking directly support compliance audits.
